What Is the Redblock Stainless Steel Shower Niche?

The Redblock Stainless Steel Shower Niche is a prefabricated recessed shower-storage enclosure built from marine-grade 316L stainless steel. It attaches to the wall via the M-Block™ flange, which also serves as a membrane bonding surface, and a raised tile trim for the surrounding shower wall tile. A finely finished, brushed SS interior surface means no tile installation, and a precision-welded body made from 1.2mm stainless sheeting, means it's water vapor-impermeable. Two sizes are available: 10×14 and 10×28, both with 3mm, slotted, CNC finished shelving.

Redblock Stainless Steel Shower Niche — key product facts
Product typePrefabricated recessed stainless steel shower niche
Material1.2 mm marine-grade 316L stainless steel with molybdenum
Water-vapor diffusionNo vapor diffusion through the solid stainless-steel niche body
ModelsN1014-M (10 × 14 in.) and N1028-M (10 × 28 in.)
InstallationRecesses into the shower wall; M-Block™ flange installs on the backer board surface, with screw attachment to the framing.
Included mounting fasteners1.5" CSK (flush mount) stainless steel screws are included in the package to avoid galvanic oxidation.
Waterproofing interfaceM-Block™ perimeter flange integrates with the surrounding shower wall waterproofing membrane
Tile compatibilityIntegrated tile-edge trim accommodates wall tile up to 1/2 in. thick
Water DrainageSlotted shelves with smooth CNC edges; niche bottom slopes outward 1°
Current price$429 USD (N1014-M) / $539 USD (N1028-M)
ShippingFree U.S. shipping; ships in 1–2 business days; standard delivery 4–7 business days
Returns30-day return window; free returns on defective items; current page states refund or exchange

Why this niche exists

A Revolutionary Prefab, Finished Shower Niche

My brother David and I designed this niche more than 10 years ago to solve real-world shower storage problems for my shower remodel clients. After several refinements, the current design includes a finely brushed stainless finish, precision welded 316L sheet stainless steel for durability and easy cleaning, slotted burr-free CNC finished shelves, and the M-Block™ flange for quick & secure installations.

A proud accomplishment and the first niche of its kind, the Redblock SS shower niche combines an unusual design with a bold aesthetic. It took a while for it to build momentum, but it has managed to established a solid position in the marketplace, with many happy customers installing and appreciating it in their showers.

Key advantages at a glance

Six Core Features That Define the Redblock Shower Niche

Welded 316L Stainless Enclosure

A 1.2 mm solid stainless steel, precision welded enclosure, super corrosion resistant 316L stainless steel, durable, and 100% recyclable at the end of its service life.

Vapor-Impermeable Niche Body

Water vapor cannot diffuse through the stainless back, sides, top, bottom, or shelves.

M-Block™ Wall-System Integration

The perimeter flange structurally attaches the niche to the framing, while also providing the bonding surface for the surrounding shower-wall waterproofing membrane (liquid or sheet).

Finished No-Tile Interior

The stainless enclosure is the finished storage surface, eliminating niche-interior tile, mortar, grout, and associated corner joint sealing.

Integrated Tile-Edge Trim

This attractive, brushed stainless, 9/16" square, box-style tile trim is built right into the Redblock Shower niche, eliminating one of the most time-consuming stages of building a tiled niche (accomodates tile up to 1/2 inch thick).

Drainage and Drying

Slotted shelving and the 1° outward sloping floor help water leave the niche and your shower products, while the shelf openings also double as a washcloth and loofah hanger.

Annotated Redblock N1014-M stainless steel shower niche showing its M-Block flange, integrated tile-edge trim, slotted shelf, and stainless-steel enclosure

360° Product View

Explore the N1028-M From Every Angle

Drag or swipe the niche to inspect the M-Block™ perimeter flange, enclosure depth, shelf layout, mounting locations, and welded stainless-steel construction.

Drag or swipe to rotate. Arrow keys also work.N1028-M stainless steel shower niche shown in a rotatable 360 degree product view

Front view

Interactive product rendering. Rotate the niche to inspect its exterior geometry and construction details.

Material & Structural Performance

Precision Engineered and Factory-built to exacting Specs

The Redblock SS niche is built from finely brushed marine-grade 316L stainless steel with a 1.2mm body, and 3mm thick shelves, and precision laser-welded into a single unibody frame before leaving the factory floor.

Site-Built Niche: A custom tiled niche is constructed in the field using multiple pieces of backer, membrane, mortar, tile, tile-trim, and shelves, then grouted and sealed on site. A tile-ready prefab reduces the niche box construction steps, but still requires all the tile installation steps. More steps means more labor, more installer skill required, and more potential error in the build.

Redblock SS Niche: The Redblock niche arrives as a factory-finished, brushed stainless steel enclosure that's complete and ready for use as soon as it's attached to the wall and connected to the membrane.

  • Corrosion-resistant alloy: 316L is the stainless grade for both niche sizes.
  • 1.2mm solid sheet-SS body: The niche enclosure is formed from sheet stainless steel rather than foam panels vulnerable to puncture, cracking, and crushing damage.
  • Laser-welded enclosure: Factory-welded corners and seams replace prefab foam seams held together with polyurethane, or field-built corners that require meticulous waterproofing.
  • A factory-perfect brushed SS interior: A completely finished niche interior with built-in tile trim, rather than just a tile-ready substrate.
  • Consistent size & geometry: A precision, factory-build niche means consistency, so it always meets the spec., with no surprises. Site-built niches in contrast, are built by trades with varying skill levels, making them inherently inconsistent.
  • 100% recyclable material: The 316L stainless steel is recyclable at the end of its service life.

Weld and Corner Detail

A close-up view of the precision welding and fabrication of the stainless steel niche frame.

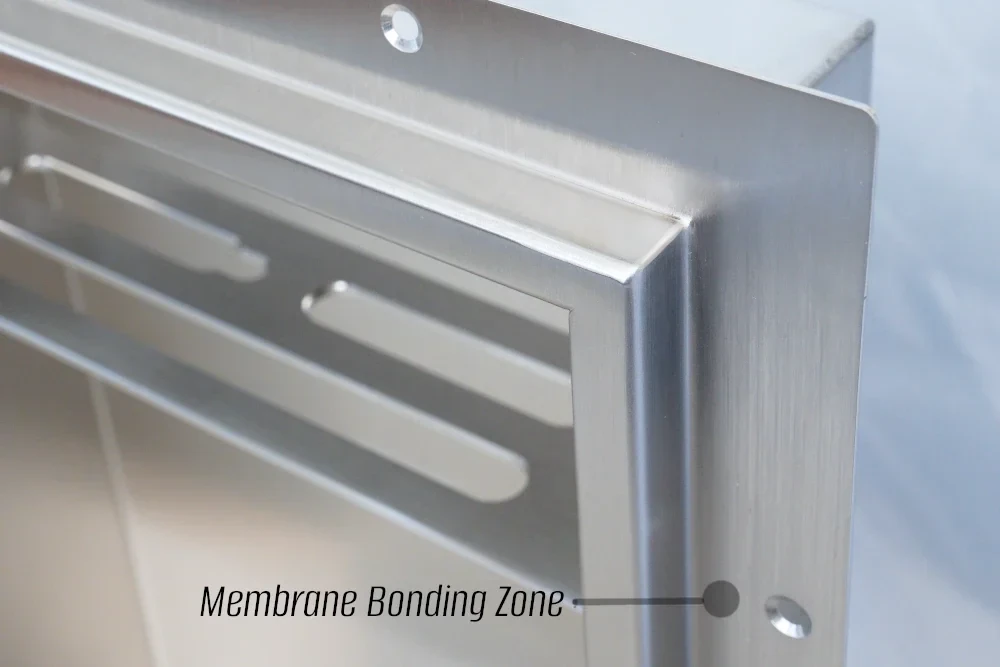

Exterior corner
Redblock N1014-M stainless steel shower niche showing outside corner weld detail

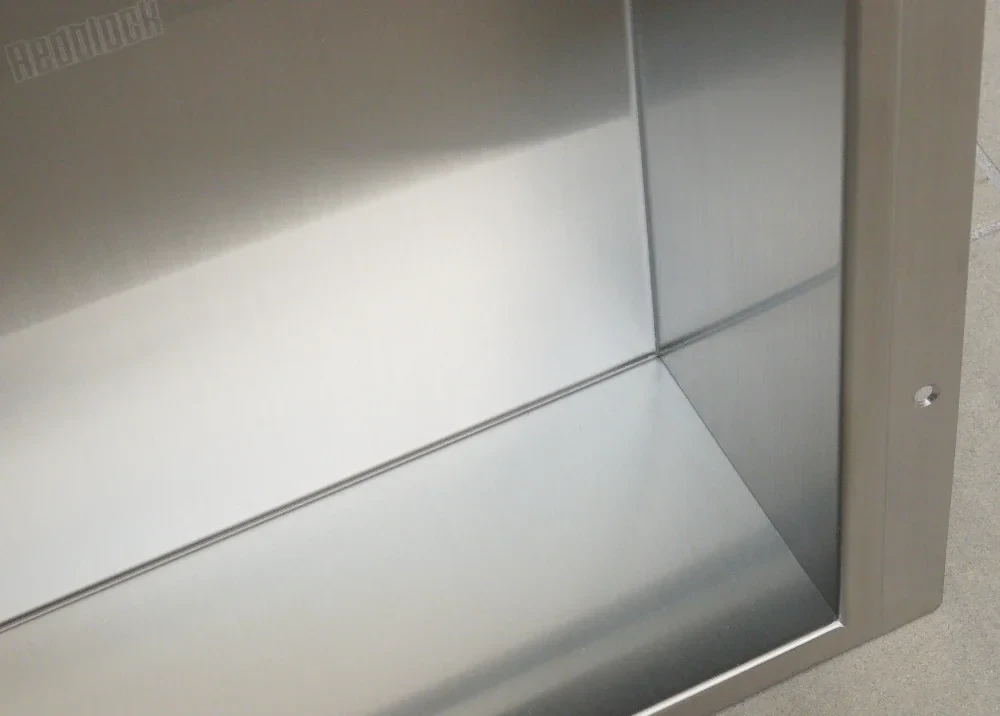

Interior corner
Redblock N1014-M stainless steel shower niche showing inside corner weld detail

Why 316L Stainless Steel Matters

Showers are hard on metal.

All shower fixtures are regularly exposed to water, hard-water minerals, soaps, and harsh cleaning products, so the metal they're made from is important. The Redblock SS niche is built from marine-grade 316L stainless steel, a molybdenum-alloyed, low-carbon stainless steel with greater resistance to chloride corrosion than standard 304 stainless steel.

Close-up of the Redblock Stainless Steel Shower Niche brushed 316L stainless steel interior finish being cleaned with a sponge
Why 316L Stainless Steel Matters
MaterialCorrosion ResistanceDurabilityShower Suitability
316L Stainless SteelExcellentHigh Excellent long-term choice for a permanently exposed shower enclosure because of its vapor impermeability, and it's high resistance to corrosion caused by chlorides, hard water, and other harsh bathroom cleaning products.
304 Stainless SteelGoodHigh Durable and widely used, but offers less resistance to chloride-related corrosion than 316L stainless steel in demanding wet environments.
AluminumModerateModerate Lightweight and corrosion resistant when properly finished, but softer and more susceptible to scratching and surface damage than stainless steel.
Plastic / FoamDoes not rustLower Common in tile-ready niches, but normally serves as a substrate rather than the finished exposed shower surface and can be more vulnerable to puncture, crushing, or jobsite damage before tiling.

Vapor-impermeable enclosure

No Water-Vapor Diffusion Through the Niche Body

Foam, plastic, and cementitious shower niches all transmit some water vapor. The Redblock niche is formed from solid 1.2mm 316L stainless steel, so water vapor cannot diffuse through it.

Water vapor moves through vapor-permeable materials in response to differences in vapor pressure (Vapor Drive). In a exterior shower wall, where there's often a meaningful temperature difference between the interior and exterior of the wall assembly, Vapor Drive can force water vapor through these materials, and into the wall assembly. If this vapor encounters colder materials within the assembly, it will readily condense into liquid water.

The Redblock stainless-steel niche entirely removes that diffusion pathway. Its 1.2mm stainless steel body and solid corner welds, entirely stops water vapor from diffusing through it, and into the stud cavity.

Comparison of water-vapor diffusion through a foam shower niche and the Redblock 316L stainless-steel niche. Vapor passes through the foam niche body but stops at the stainless-steel enclosure.

Wall-system integration

The M-Block™ Flange Integrates the Niche With the Wall Assembly

The M-Block™ perimeter flange serves three important functions: providing structural attachment to the framing, a low profile bonding surface for waterproofing, and an attractive tile trim between the niche and the shower wall tile.

Layered N1014-M shower niche installation showing the backer board, M-Block flange with installed stainless screws, sheet waterproofing membrane bonded over the flange, thinset mortar, and glass wall tile

1. Structural attachment

Countersunk holes in the M-Block™ perimeter flange and the supplied flat-head (CSK) stainless screws provide flush mount screw attachment to shower wall (wood) framing. Attaches to steel stud wall with polyurethane adhesive.

2. Membrane transition

The M-Block™ flange installs directly on the backer board surface next to the niche wall recess, providing an excellent bonding surface for the shower wall waterproofing membrane. The flange is only 1.2mm thick, with flush mounted SS screws to minimize obstruction in the tile layer.

3. Tile Edge Trim

The raised perimeter of the M-Block™ flange represents the integrated tile-edge trim. An attrractive, brushed, box-style trim that extends a full 9/16" above the flange surface to accommodate the waterproofing material and wall tile up to 1/2 inch thick.

Wedi laboratory adhesion testing

Wedi laboratory testing of Wedi Subliner Dry bonded to the Redblock stainless-steel niche flange with Wedi Joint Sealant demonstrated no tensile-bond failure across all five test specimens.

Read the Redblock technical bulletin summarizing the test method and results.

Finished interior & installation efficiency

A Finished Stainless Interior means No On-Site Build Steps

Because the inside of the niche box is finished, the niche installation is complete immediately after rough-in installation.

All prefabricated shower niche installations require basically same rough-in install steps whether a Redblock SS niche, or a tile-ready prefab: Decide on location, then install blocking, cut the rough-in hole, fasten the niche, and integrate with shower-wall waterproofing.

The big difference is after the rough-in. At this stage, a typical tile-ready prefab still requires interior tiling, shelf and tile trim installation, as well as grouting, sealing and finished caulking, yet the Redblock SS shower niche install is complete.

  • No niche-interior tile layout: No need to plan your niche interior tile layout and shelf positioning. The stainless niche interior is already finished and ready to use, with shelves included.
  • No interior tile cuts: The installer does not need to meticulously cut and fit tile across the niche back, sides, floor, or ceiling.
  • No tile setting or grouting: The finished niche removes all the site-built finishing steps including tile setting, shelf installation, grouting, sealing, and caulking the corners.
  • No need to slope the base: The installer doesn't have to worry about tile-ready niches with no bottom slope. The Redblock niche floor is manufactured with a 1° outward slope.
  • No difficult trim to install: The installer can avoid one the most difficult and time-consuming steps in tiled shower niche installations. The Redblock niche includes an attractive brushed stainless trim that's built right in.

Rough-In Stage, Complete.

Finishing the rough-in takes about the same time for both niches. The big difference is, at this stage the Redblock Niche installation is complete, but the tile-ready niche install has hardly even begun.

Conventional Tile-Ready Niche
Rough-in installation of foam niche into shower wall with shower wall waterproofing integration
Redblock Stainless Steel Niche
Rough-in installation of Redblock SS shower niche into shower wall with shower wall waterproofing integration

Rough-In Planning

What to Know Before Installing the Niche

The Redblock niche is compatible with standard 2×4 wall framing and typical shower-wall tile assemblies.

Installation compatibility
Construction stage planningRequires a minimum stud wall depth of 3 1/2" (2x4 stud wall), a stud cavity that's at least 10 1/4" wide and free of obstructions.
Structural supportThe niche is supported via at least one vertical stud, and 2x4 blocking above and below the niche; tile backer board offers additional support and rigidity. The niche is sructurally secured to the framing via stainless screws (wood framing), or adhered with construction adhesive (steel-stud framing).
Tile thicknessUp to 1/2 in. wall tile
Waterproofing transitionThe shower wall waterproofing layer is applied over (or affixed to) the perimeter niche mounting flange (M-Block™ flange) to provide a continous unbroken membrane between the shower wall and niche.
N1014-M rough openingWidth: 10 1/4", Height: 14 1/4"
N1028-M rough openingWidth: 10 1/4", Height: 28 1/4"
Required wall depthMinumum requirement: 2x4 stud cavity (3 1/2" deep)
Approved orientationsStandard orientation is vertical, with larger storage space at bottom however, since all surfaces are uniformly finished, and all four sides have a 1 degree outward slope, any orientation is acceptable.

Rough-Opening & Framing Details

Compare the required rough opening, framing relationship, niche depth, and M-Block™ flange position for each Redblock shower niche model.

N1014-M — 10 × 14 in.
N1014-M Redblock stainless steel shower niche rough-opening and framing diagram
N1028-M — 10 × 28 in.
N1028-M Redblock stainless steel shower niche rough-opening and framing diagram

Niche Selector

Which Redblock Shower Niche Fits Your Storage Plan?

Answer three quick questions to compare the compact N1014-M with the taller N1028-M. The selector weighs storage demand and shared use, then reminds you which rough-opening dimensions to confirm before ordering.

1. How much shower storage do you want?
2. How many people will regularly use this shower?
3. Has the planned wall location already been checked for the taller N1028-M?

Size Comparison

Two Sizes. Same Stainless-Steel Construction.

Choose the niche height that fits the shower, the storage plan, and the number of products you want to keep organized.

Relative storage comparison

The N1014-M provides compact recessed storage for everyday shower essentials, while the taller N1028-M adds substantially more vertical storage and a second integrated shelf.

10 × 14 Niche (N1014-M)

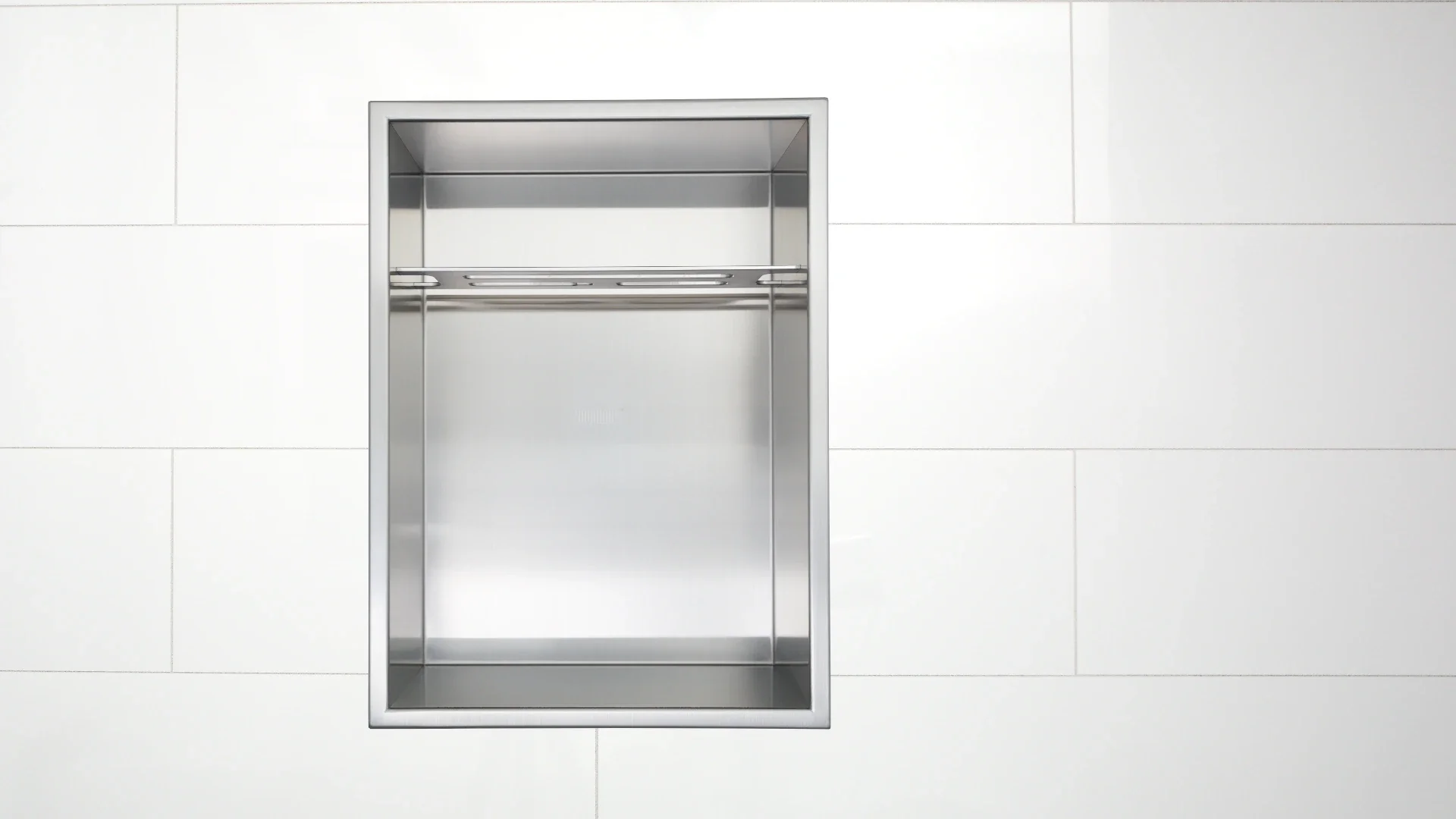

Installed N1014-M stainless steel shower niche in a white tile shower wall with everyday shower products
10 × 28 Niche (N1028-M)
Installed N1028-M stainless steel shower niche in a white tile shower wall with shower products arranged across its two integrated shelves

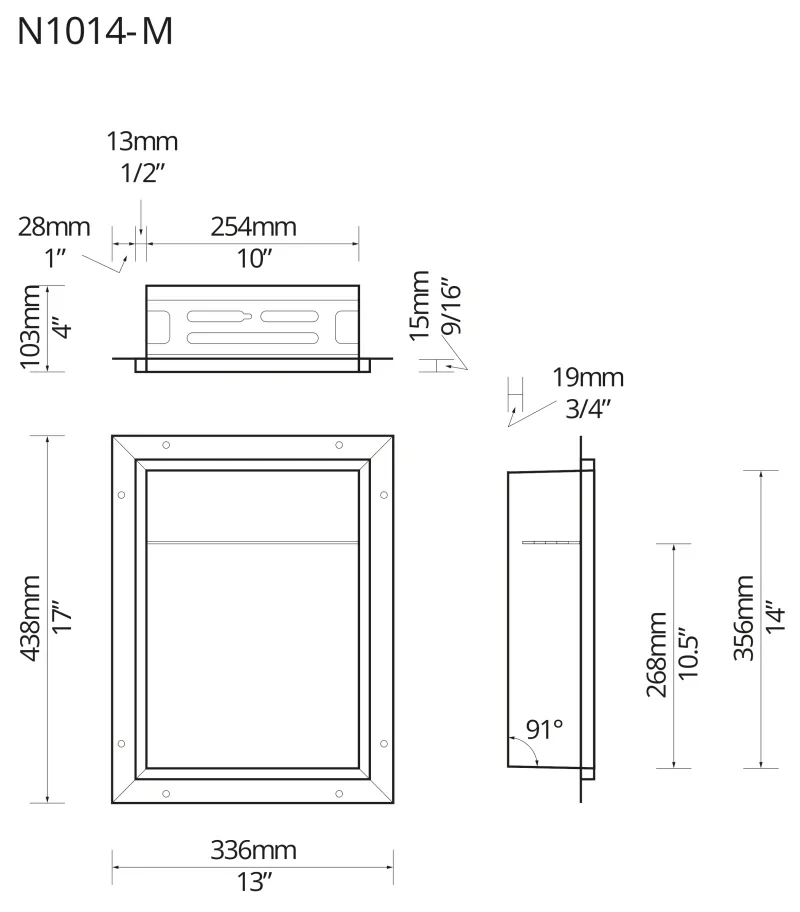

N1014-M stainless steel shower niche dimensional drawing with front, side, and top views

10 × 14 Niche

SKU: N1014-M

Price: $429 USD

Interior dimensions: 10 × 14 in.

Rough opening: 10 1/4 × 14 1/4 in.

Storage: One integrated slotted stainless-steel shelf.

Best Use: Compact shower storage, smaller wall areas, guest bathrooms, or projects where essential recessed storage is needed without using as much vertical wall space.

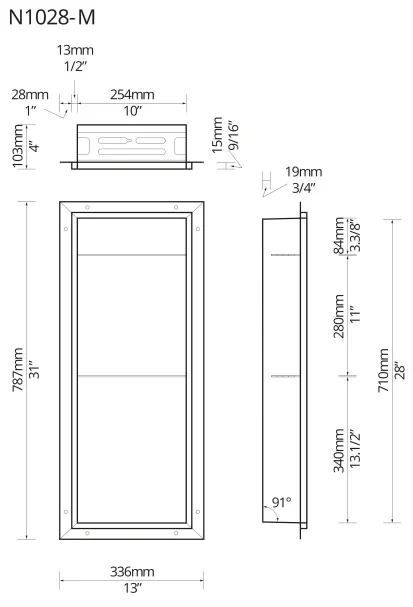

N1028-M stainless steel shower niche dimensional drawing with front, side, and top views

10 × 28 Niche

SKU: N1028-M

Price: $539 USD

Interior dimensions: 10 × 28 in.

Rough opening: 10 1/4 × 28 1/4 in.

Storage: Two integrated slotted stainless-steel shelves.

Best Use: Larger showers, shared bathrooms, larger product collections, or projects where additional vertical storage and separation between shower products is preferred.

Shower Storage Savings

Build More Shower Storage. Save Automatically.

Mix and match eligible Redblock shower-storage products—including shower niches, niche shelves, and corner shelves—and receive an automatic retail discount when you purchase two or more.

No discount code required. Available to retail customers & all new trade and business accounts.

Buy 2 eligible products

Save 10%

Combine any two eligible Redblock shower-storage products in the same qualifying order.

Best Value

Buy 3 or more

Save 15%

The 15% discount applies to all eligible shower-storage products in the qualifying retail order.

Popular combinations:

  • A Redblock stainless steel shower niche combined with one or more corner shelves.
  • Corner shelves and niche shelves purchased together for the same shower project.
  • Multiple shower-storage products purchased for several bathrooms or client projects.

Everyday use

Better Draining & Easier Cleaning than a Tiled Niche

The stainless interior means none of the messy, high maintenance grout joints found inside a tiled niche, with ample drainage slots and a 1° outward floor slope to help move water out of the niche and away from your shower items.

  • No grout joints inside the niche: A Smooth stainless steel surface replaces grout joints that can absorb water, collect soap film, accumulate stains, and facilitate mold growth.
  • Wipe-clean interior: inside the niche are only smooth, snag-free surfaces, making it easy to clean. A stark contrast to all the scrubbing required to clean a typical tiled niche.
  • Slotted shelves: water has a direct path through the shelf instead of pooling in grout lines and around bottles and bar soap.
  • 1° bottom slope: the niche floor is factory finished with a 1° outward slope to eliminate standing water at the base of the niche.
  • Hanging openings: there's a front washcloth hanger, and a notch for hanging a loofah or washing puff. These notches ensure faster drying of your items, helping reduce mold and mildew growth.

Finished-metal niche comparison

Not All Finished Metal Shower Niches Are Built the Same

Finished metal shower niches can look similar after installation while using very different materials, storage layouts, drainage designs, and waterproofing strategies. Most fall into one of three general installation architectures.

Comparison of membrane-integrated, component-assembled, and overlap finished-metal shower niches
What to compareMembrane-integratedComponent-assembledOverlap
Basic design
  • Finished niche installed during wall construction
  • Perimeter flange integrates directly with wall waterproofing
  • Separate manufactured body, frame, and sealing components
  • Perimeter flange parts are fitted and sealed during installation
  • Finished metal niche fits into a recess in fully tiled shower wall
  • Face flange overlaps the finished, tiled wall
Shower Wall Waterproofing connection
  • Perimeter installation flange bonds to shower-wall membrane
  • Redblock uses its M-Block™ membrane-integration flange
  • Waterproofing connects to the system's frame and/or other sealing components
  • Field-sealed joints may be part of the assembly
  • Niche recess breaches the waterproofing layer (no membrane integration)
  • Visible overlap flange seals against the surface of finished, tiled shower wall
Field assembly
  • Finished niche enclosure is factory-built
  • Field work includes wall attachment and perimeter membrane integration
  • Multiple system components may require fitting and adjustment
  • Critical joints may be completed and sealed on site
  • Finished niche insert is relatively simple to place
  • Wall recess and perimeter seal are installer's responsibility
Storage & drainage
  • Varies by product
  • Redblock: integrated slotted shelves + 1° outward floor slope
  • Very limited
  • Built-in shelves and floor slope should be verified
  • Very limited
  • Most common are shelfless (open-box) designs
Material & finish
  • Primarily stainless steel
  • Grade and finish vary by manufacturer
  • Redblock: brushed 316L stainless steel
  • Aluminum, stainless steel, or mixed components
  • Finish options depend on the system
  • Primarily 304 grade stainless steel
  • Thicknesses, coatings, and finishes vary widely
Design flexibility
  • Several size and finish options available depending on manufacturer
  • Redblock: two vertical sizes in brushed stainless
  • Often strong in color, trim depth, and orientation options
  • Adjustability at install can offer a wide range of trim depths
  • Few shelf options, but many sizes and finishes are available
  • Simple overlap installation is common
Current example Redblock Stainless Steel Shower Niche Schluter® DESIGN-NICHE BWE over-mount stainless niche models

Redblock SS Niche vs Tiled Niches

Compare Installation, Finish, Durability and Risk

The basic decision is "stainless steel niche vs a tiled niche", but with very different niche materials and construction methods, there are different risks to consider as well as durability and maintenance issues.

Redblock SS Niche vs Tiled Niches
Decision pointRedblock stainless nicheFoam / tile-ready nicheSite-built tiled niche
Finished interior316L stainless steelRequires tile finishRequires site-built tile finish
Wall attachmentFrame-mounted through countersunk holes in M-Block™ flange via supplied SS screws (or adhesive with steel stud framing)Via SS screws & washers through perimeter flange (foam), or via pre-drilled holes in perimeter flange (PVC & ABS niches).Depends on chosen substrate material
Waterproofing interfaceM-Block™ perimeter flangeFoam or plastic perimeter flange, depending on prefabDepends on field-built waterproofing details
Tile inside nicheNoYesYes
Field finishing inside nicheNo field finishing requiredTile, mortar, shelves, grout, perimeter tile trim, and corner caulking requiredFull niche structure, waterproofing, tile, mortar, shelves, grout, perimeter tile trim, and corner caulking required
Work remaining after perimeter waterproofingNone - Proceed to surrounding wall tile installationNiche interior still requires tile and finish workNiche interior still requires complete field finishing
Drainage slope at niche base1° outward slope manufactured into the finished stainless floorFinished drainage slope must be established during tile installation when not provided by the niche systemCreated as part of the field-built substrate/tile assembly
Routine cleaningSmooth stainless interior with no tile edges or grout jointsTiled interior includes grout jointsTiled interior includes grout joints
Water-vapor diffusion through niche bodyNone through the vapor-impermeable 1.2 mm solid stainless-steel bodySome water-vapor transmission through the niche bodySome water-vapor transmission through the niche body
Jobsite damage exposure risk1.2 mm stainless steel enclosureFoam niche body requires careful storage & handling before installationDepends on the substrate and membrane used
Sizing optionsTwo published sizesVaries by productVaries by project framing and design

Installation overview

For New Showers and Full Remodels Only

Installs into a rough opening in the backer board surface after board installation and before waterproofing. The Waterproofing membrane is then applied over the M-Block™ flange during shower wall waterpoofing.

1

Prepare framing

When install location is decided, mark out the vertical rough opening on the stud face & install 2x4 horizontal blocking 1/2" above the top line, and 1/2" below the bottom line to support the niche on three sides. Record these measurements.

2

Install and Mark the Backer Board

Install the tile backer board on the shower wall studs. Record the niche cutout location on the backer board surface using your recorded measurements, ensuring that cutout marks are 1/2" away from the framing.

3

Cut Backer Board & Fasten Niche

Cut out the rectangular section of backer board. Position the niche in the wall opening, mark out the screw holes, pre-drill the backer board, and attach the niche to the framing via the M-Block™ flange and supplied ss flush mount screws (see Installer Note below).

4

Integrate waterproofing

Shower-wall waterproofing membrane overlaps the perimeter of the M-Block™ flange, covering the screws. Sheet membrane bonds to flange with polyurethane sealant (Wedi Joint Sealant is recommended - see accompanying adhesion test).

Important Installer Note Regarding Screw Installation:

Use ONLY the supplied 1.5" CSK stainless steel screws to install the niche into wood framing, since galvanic oxidation reactions can occur if any other type of metal screws are used. These screws are also designed to mount flush with the flange, so replacements screws will need to match the existing screw specs exactly.


However, when the shower wall is constructed with metal studs, the niche must be adhered to the shower wall with polyurethane adhesive ONLY, No screws of any type can be used for the same reason as above; galvanic oxidation reactions can occur when the screws come into contact with ferrous metal studs.


The above is only a brief summary. Please consult the official Redblock Installation Instructions for a more detailed review of the install procedure.

See it installed

Watch the Redblock SS Shower Niche Installation Process.

Installed application

Simple & Practical Shower Storage for your Family

Customer feedback

What Customers Say About the Redblock Shower Niche

5.0

11 reviews

Customers highlight these advantages: easy installation, high-quality, crisp modern aesthetic, a great alternative a custom tiled niche.

Easy installation Steamline, Flush face frame High-quality Sleek, modern design
★★★★★
“Beautiful niche, easy install. Sleek, modern-looking, and a great alternative if you don't want to deal with fabricating your own niche. Will definitely use these in future bathroom projects.”
— Elyse Kroll Interiors.
★★★★★
“We installed this product in two of our client's bathroom showers and are very pleased with the results. The clean, crisp, modern lines and flush face frame make the showers feel streamline. The product is well made and consistent.”
— Connie B.
★★★★★
“The niche we received is extremely high quality and it was easy to install. It looks fantastic as well. The products may be a little pricey, but you absolutely get what you pay for – well worth the price!”
— Eric.

For tile installers, remodelers, and builders

Fast, Precise, and Reliable Installation Every Time

The advantage for professional installers is the elimination of all tile installation and finishing steps, a more durable structure, and a lab-verified membrane integration. Fewer build steps means less error and fewer service calls.

Fewer labor-intensive niche steps

The finished stainless interior eliminates niche tile layout/ shelf planning, detailed tile cutting and setting, mortar placement, creating the niche-floor drainage slope, grout application, and installing perimeter tile edge trim.

Less exposure to jobsite damage

The niche is 1.2 mm stainless steel, not a foam board body that's vulnerable to punctures and/or crushing damage before install. Accidents like this are common on residential and especially commercial jobsites where multiple trades are often working in and around unfinished bathrooms and showers.

Reduced callback exposure

A precision welded, factory-perfect stainless enclosure, lab-verified waterproofing transition, and supplied ss mounting screws basically eliminates all the build-quality variables that can ruin a contractor's day. Bottom line: Fewer build steps means less error, and fewer service calls.

Repeatable planning and resources

The exact same manufactured geometry, framing attachment, tile-edge detail, downloadable data sheet, and installation guide can be reviewed and repeated from project to project. No surprises.

Buying for client projects?

Contact Redblock about professional pricing, repeat-order support, and product-selection help for upcoming shower projects.

Ask About Trade Purchasing

Technical specifications

Redblock Stainless Steel Shower Niche Specifications

Technical specifications for the Redblock Stainless Steel Shower Niche
SpecificationN1014-MN1028-M
Published model size10 × 14 in.10 × 28 in.
SKUN1014-MN1028-M
GTIN860367001573860367001580
Price$429 USD$539 USD
Material316L stainless steel316L stainless steel
FinishBrushed stainless steelBrushed stainless steel
Material thickness1.2mm sheet stainless body/ 3mm shelf1.2mm sheet stainless body/ 3mm shelves
Mounting fasteners1.5" CSK (flush mount) stainless steel screws1.5" CSK (flush mount) stainless steel screws
Depth4" including built-in tile trim4" including built-in tile trim
Rough opening10 1/4" x 14 1/4"10 1/4" x 28 1/4"
Shelf configurationIntegrated slotted shelfTwo integrated slotted shelves
Bottom slope1° outward1° outward
Tile Trim Depth9/16" - accomodates up to 1/2" shower wall tile9/16" - accomodates up to 1/2" shower wall tile
Installation typeRecessed box, perimeter frame-mountingRecessed box, perimeter frame-mounting
Waterproofing interfaceM-Block™ perimeter flangeM-Block™ perimeter flange
OrientationVerticalVertical

Shipping & Returns

Fast shipping and a straightforward return policy.

Shipping Information

  • ✓Free shipping within the Continental US.
  • ✓Ships in 1-2 business day under normal conditions.
  • ✓Standard delivery typically 4–7 business days after tracking is received.
  • ✓Express shipping is available.

Return Policy

  • ✓30-day return policy for eligible returns.
  • ✓Free returns on defective items and eligible returns.
  • ✓Full refund or exchange when eligible.
  • ✓Contact us with questions about return eligibility.

Package Contents

One Redblock Stainless Steel Shower Niche with stainless steel mounting screws. Tools, adhesive, and pictured shower accessories are not included. Please see our Installation Instructions PDF, and/or our Installation Video for detailed installation guidance.

Frequently asked questions

Redblock Stainless Steel Shower Niche FAQ

Answers to common questions about shower-niche waterproofing, fit, installation, sizing, drainage, cleaning, material performance, and mounting fasteners.

Is the Redblock stainless steel shower niche waterproof, and does it need additional waterproofing?

The niche is a fully welded stainless steel enclosure so yes, it is entirely waterproof (and vapor-proof). The only waterproofing necessary is the attachment of the surrounding shower wall waterproofing membrane to perimeter installation (M-Block™) flange.

How does the M-Block™ flange system work?

The M-Block™ flange extends around the niche perimeter serving three jobs: it includes screw holes for attaching the niche to wall framing, provides the bonding surface for the surrounding shower-wall waterproofing membrane, and is also a built-in tile trim for your shower wall tile.

What rough opening is required for the N1014-M and N1028-M?

Model N1014-M: 10 1/4" x 14 1/4", Model N1028-M: 10 1/4" x 28 1/4" (cut into backer board). Please review the official installation PDF, or the install video for detailed installation instructions.

Can I install this niche in an already tiled shower wall?

No. The Redblock SS niche is designed to be installed only in a new shower build, or a full remodel. It recesses into a cutout in the backer board before shower wall tiling, and is attached to the framing via screws through backer board surface (or adhesive). It cannot be retrofit installed safely.

Which size should I choose: the 10×14 or 10×28 shower niche?

Choose the N1014-M when you want a more compact niche for essential storage. Choose the N1028-M when you want the taller format and two slotted shelves for greater storage and product separation.

Does the inside of the Redblock shower niche need to be tiled?

No. The niche body is fabricated entirely from 316L stainless steel sheets, and has a brushed stainless steel finished interior surface, so no tiling is necessary. After rough-in and perimeter waterproofing, the installation is done.

How does the Redblock niche drain, and is it easier to clean than a tiled niche?

The niche uses slotted shelves and a 1° outward bottom slope to help drain water away. Because the interior is finished stainless steel, there are no grout joints inside the niche to collect soap film, stains or mold, which means no scrubbing. Routine residue can easily be wiped from the smooth stainless interior surfaces with a soft cloth. Follow Redblock's approved care and cleaning instructions.

Does the stainless steel niche block water vapor?

Yes. The niche body is formed from 1.2 mm solid 316L stainless steel, so water vapor cannot diffuse through its back, sides, top, or bottom. Foam, plastic, and cementitious shower niches all transmit some water vapor through the niche body no matter how thoroughly they are waterproofed.

Why does Redblock use 316L stainless steel?

Redblock uses marine-grade 316L stainless steel for superior corrosion resistance compared to regular 304 grade stainless steel. This marine grade stainless steel has a long history of strength and durability in chloride-rich salt water environments, making it ideal for the shower, especially when exposed to harsh chemical cleaners and hard water. It's also 100% recyclable at the end of its service life.

Why do I need to use only the stainless steel mounting screws supplied with the niche?

The supplied screws are the correct metal (stainless steel), correct head type, correct length and gauge to securely connect the flange to a wood-framed shower wall. If screws made of a different metal are used instead, galvanic oxidation reactions can occur. However, if the shower wall is framed with steel studs, only polyurethane sealant should be used (no screws) to affix the niche to the shower wall. Please refer to the official Installation Instructions for more details.

What tile thickness can the built-in tile trim on the M-Block™ flange accommodate?

The integrated tile-edge trim is designed for shower-wall tile up to 1/2 inch thick.

Choose the niche before you close the wall

Build the Shower Storage Into the Wall Assembly

Choose the Redblock Stainless Steel Shower Niche when you want a finished 1.2 mm 316L stainless enclosure with no water-vapor diffusion through the niche body, fewer field-built niche-finishing steps, a defined membrane-integration flange, and a wipe-clean storage surface without niche-interior grout joints.
